TOROGreen ™ DL2000 Loading Marker
    Publish time 2019-03-14 17:17

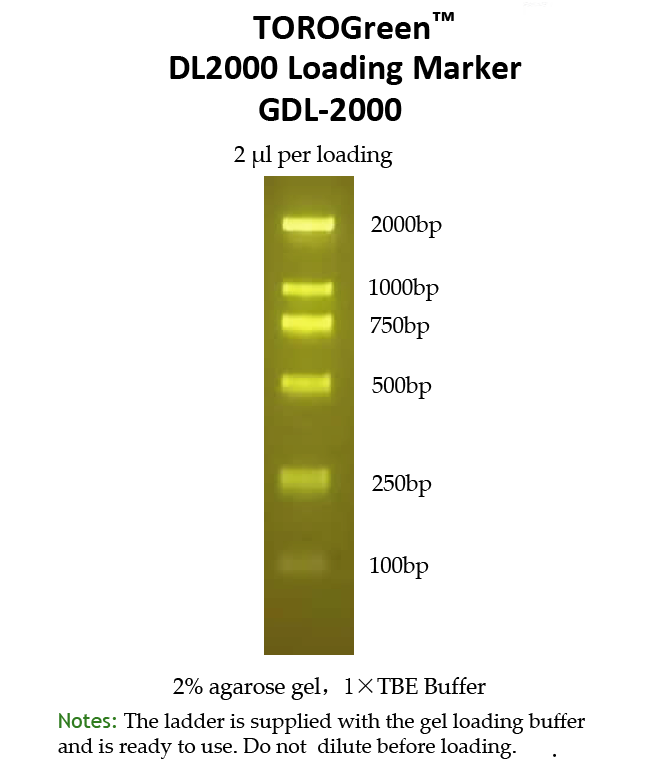

The TOROGreen ™ DL2000 Loading Marker is a ready-touse DNA marker, which is premixed with high sensitivity DNA binding fluorescent dye and loading dye for direct gel loading. The DNA Marker GDL2000 is composed of 6 individual DNA bands: 2k,1k,750bp, 500bp, 250bp and 100 bp. These bands can be visualized when illuminated with 470nm blue light. This DNA marker contains one enhanced bands(750bp) for easy reference. In addition, two tracking dyes, Xylene cyanol FF and Orange G which mimic the migration of 3-5kb and 50 bp dsDNA during electrophoresis are added for real time monitoring. Realtime observation of electrophoresis is also possible if a 470nm light source is fitted to the electrophoresis tank.




FEATURES


  -Clear and sharp bands
   -Ready-to-use: premixed with loading dye for  direct loading
   -Quick reference: 750bp enhanced bands
   -Directly observed by blue light— premixed with  high sensitive DNA fluorescent dye


COMPONENTS


   -Cat NO :GDL2000
   -Volume: 250 µl×1tube
                 2µl per well for 125 applications
   -Volume: 250 µl ×5tube
                 2µl per well for 625 applications


CONCENTRARATION


     0.07mg/mL


QUALITY  CONTROL


   -6 defined bands are observed during electrophoresis in agarose gel.
   -No nuclease activity is detected by a direct nuclease activity assay.

 BANDS RANGE


-100bp,250bp,500bp,750bp,1kb,2kb.


ELECTROPHORESIS CONDITIONS


   -2% agarose gel is recommended.
   -1×TBE buffer is recommended.
    -Recommended voltage:4-10V/cm


LOADING VOLUME


The DNA marker is supplied in gel loading buffer and is ready to use.
 - 1 µl ~ 2 µl per loading for clear visualization during  electrophoresis on a mini-gel.
 -Apply more for a thicker or larger gel.


NOTE


- This DNA Loading Marker was not designed for precise quantification of DNA mass, but can be
 used for approximating the mass of DNA by intensity comparison.
- This DNA Loading Marker is premixed with DNA  binding fluorescent dye,which compatible with 470 nm blue light transllumator and imaging systems.

ordering Information

Cat.No.
Product Name
Size
Store at
Price
Data Sheet
GDL-2000
TOROGreen DL 2000 Loading Marker
250ul×1tube
Store at -20°C and protected from light.
US$     20.00

GDL-2000×5
250ul×5tube
US$   100.00
